Item No.:	SY-1542

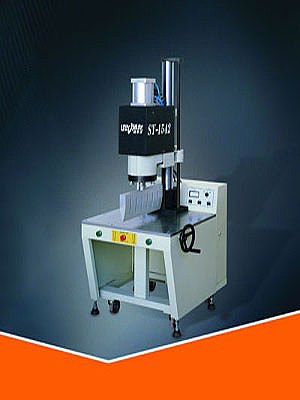

Description:	Hihg power ultrasonic plastic welding machine
1.Original packaging the piezoelectric ceramics transducer ,the export is stablized reliablely 2.The straight line guide bearing, the precise matching device 3.The horizontal zoom type structures of four comers allocate that the board four corners at bottom can transfer the standard 4.Becomes a ware ,and the horizontal zoom type structure of lasting durable horn allocates that the board four corners at bottom can dive flatly 5.Frequency modulation and the frequency automatic equalization circuit 6.Debyg the soft Boot circuit of equipment, and avoids damaging the mould Technique specifications MODEL 机型 HC-3215 HC-4215 OUTPUT POWER 输出功率 3200W 4200W FREQUENCY 频率 15KHZ INPUTVOLTAGE 输入电压 220V或380V COOLING SYSTEM 振头冷却系统 Wind coding 风冷 ROUTE HOURNEY 焊头行程 70mm 100mm VIBRATION SYSTEM 振荡系统 自激式振荡线路Atuo-stimuiating OSCILLATION TIMER 输出时间 0.01-99s PRESS YSSTEM RNDF 气压 Pressure bound 气压范围1-7bar WELDING AREA 焊接面积(mm) ○300 ○350 AIR COMPRESSOR 使用压缩机 2HP NET WEIGHT 冷重 300kg 350kg
