| Item No.: |
SY-1522/SY-2012 |
| Description: |

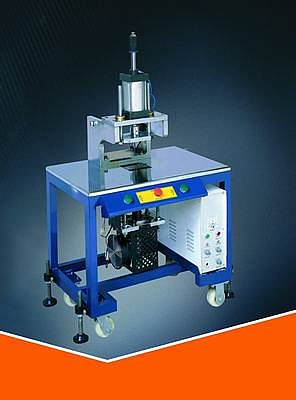

Ultrasonic Press And Melt Welding Equipment |
Our company is a private-owned technical joint-venture with high-credit, owning
the ability of researching and developing. The ultrasonic equipments
developed and produced by our company have applied national patent and
declared nation technical project for substituting similar exported products
and are well sold in the domestic and
oversea market.
Application and
feature
Adopting ultrasonic technology,this welding equipment is developed by
our factory,and has the following characteristics:
1.Traditional plastics welding;
2.Aiming at the metal accidented surface,which can't be finished by welding sole
high-frequency machine,bronzing and welding can be finished at one time;
3.Bra
mould and embossing and melt-cutting of the whole bras.
|
SPECIFICATIONS |
| MLDELS |
SY-1522/2012 |
| WORKING FREQUENCHY(KHZ) |
15or20 |
| INPUT OF TRANSDUCER(VA) |
2200/1200W |
| WELD TIME(S) |
POSITION ¢ñ 0.1-0.5
POSITION ¢ò 0.14
CONTINUAL VARIABLE |
| HOLD TIME(S) |
0.1-3CONTINUAL VARIABLE |
| FREQUENCY OF POWER(HZ) |
50 |
| VOLTAGE OF POWER(HZ) |
AC220 |
| WORKING ATOM.PRESSURE(MPa) |
0.2-0.7 |
| WELDING-HEAD MOVEMENT(MM) |
80 |
| OVERALL SIZE(MM) |
425¡Á630¡Á920 |
| NET WEIGHT(Kg) |
120 |
| WELIDING CAPABILITY(M/M§¶) |
190 |
|
