| Item No.: |
SY-1526 |
| Description: |

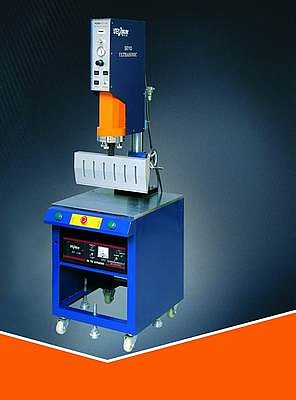

Ultrascnic Plastics Welding Equipment |
Our company is a private-owned technical joint-venture with high-credit, owning
the ability of researching and developing. The ultrasonic equipments
developed and produced by our company have applied national patent and
declared nation technical project for substituting similar exported products
and are well sold in the domestic and oversea market.
|
SPECIFICATIONS |
| MLDELS |
SY-1526 |
| WORKING FREQUENCHY(KHZ) |
15 |
| INPUT OF TRANSDUCER(VA) |
2200/1200W |
| WELD TIME(S) |
POSITION ¢ñ 0.1-0.5
POSITION ¢ò 0.14
CONTINUAL VARIABLE |
| HOLD TIME(S) |
0.1-3CONTINUAL VARIABLE |
| FREQUENCY OF POWER(HZ) |
50 |
| VOLTAGE OF POWER(HZ) |
AC220 |
| WORKING ATOM.PRESSURE(MPa) |
0.2-0.7 |
| WELDING-HEAD MOVEMENT(MM) |
80 |
| OVERALL SIZE(MM) |
425¡Á630¡Á920 |
| NET WEIGHT(Kg) |
130 |
| WELIDING CAPABILITY(M/M§¶) |
230 |
|
